Introduction of Helium Leak Detector:
Helium Leak Detector is an industrial vacuum detection device
designed for vaccum leak detection. It is a mass spectrometer leak
detector with superior sensitivity and accuracy. It has a mini leak
detection rate of 5*10-9 Pa·m3/s and sniffer mode for maximum leak testing performance. It is
suitable for all kinds of industrial vacuum leak detection
applications.
Technical Parameters of Helium Leak Detector:
Wayeal SFJ-231 RS232/485 Communication Interface Helium Leak
Detection Equipment |
Performance Indicators
| Minimum detectable leak rate
(Pa·m3/s)/ vacuum mode | 5.0×10-13 |
Minimum detectable leak rate
(Pa·m3/s)/ sniffer mode | 5.0×10-9 |
| Response time(s) | <1 |
| Startup time(min) | ≤2 |
Leakage detection range
(Pa·m3/s) | 5.0×10-13~1.0×10-3 |
Leakage rate display range
(Pa·m3/s) | 1.0×10-12~1.0×10-3 |
| Maximum allowable leak detection pressure(Pa) | 1330 |
| Detectable quality | 2,3,4(H2 , He3, He4) |
Basic Configuration
| Man-machine interface | 7 "color LCD Touch Screen |
| Ion source | 2pcs, iridium coated yttrium oxide, automatic switching |
| I/O Input/output interface | Eight inputs and eight outputs |
| Communication interface | RS232/485,USB*2 |
| MES interface | Standard |
Physical size of instrument
(W)×(D)×(H),mm | 645 x 678 x 965mm |
| Specifications of leak detection port | DN25 KF |
| Power Supply | AC220V,50Hz/60Hz |
| Operating temperature | 0-40ºC |
| Power | 1000W |
| Display language | Both Chinese and English |
| Leakage rate display | Figure, bar chart, curve chart |
Applications of Helium Leak Detector:

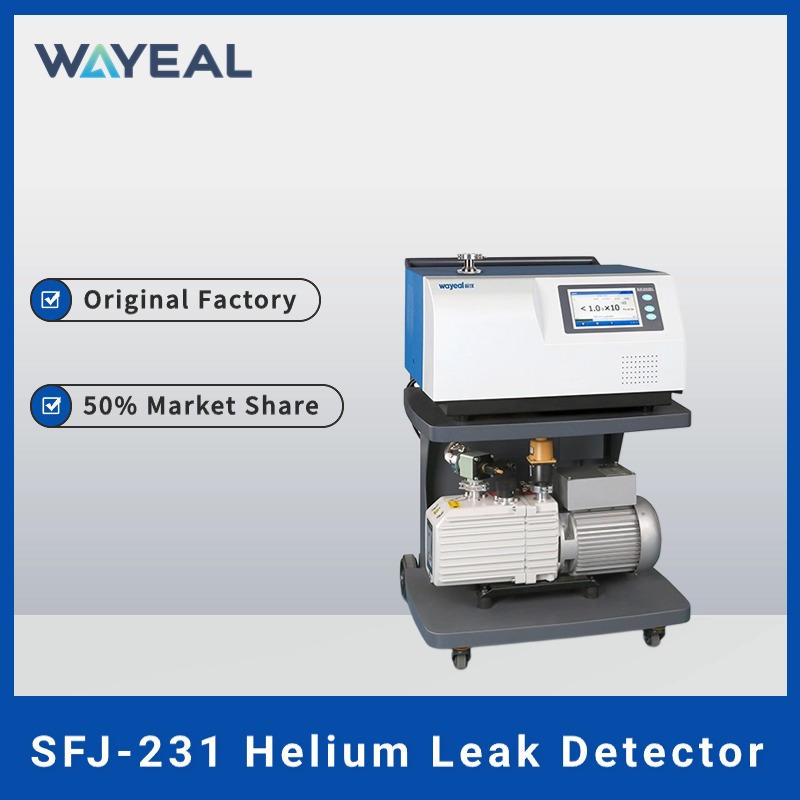

Wayeal SFJ-231 Helium Leak Detector is a reliable and precise tool
for industrial vacuum detection. It is certified by CE and comes
with a minimum order quantity of 1 unit. It is ideal for industrial
leak detection, as it offers the highest accuracy and reliability. Helium leak detection has a wide range of applications and has been
found to be an important process in various industries such as
automotive, aerospace, HVAC, refrigeration and semiconductor
manufacturing. From detecting leaks in refrigeration systems to
finding leaks in underground pipelines, helium leak testing has
shown efficacy across the everchanging sectors.
Optional Accessories of Helium Leak Detector
Spray probe, wireless remote control, 20 micron inlet filter,
calibration leak, customized tooling, sniffer, leak detection
chamber, helium pressure chamber, vaccum pump oil
Applications of Helium Leak Detector
Helium leak detection has a wide range of applications and has been
found to be an important process in various industries such as
automotive, aerospace, HVAC, refrigeration and semiconductor
manufacturing. Semiconductor industry like packing, chip manufacturing, vacuummachine, epitaxial wafer, wafer,
connector, filter, photovoltaic.
