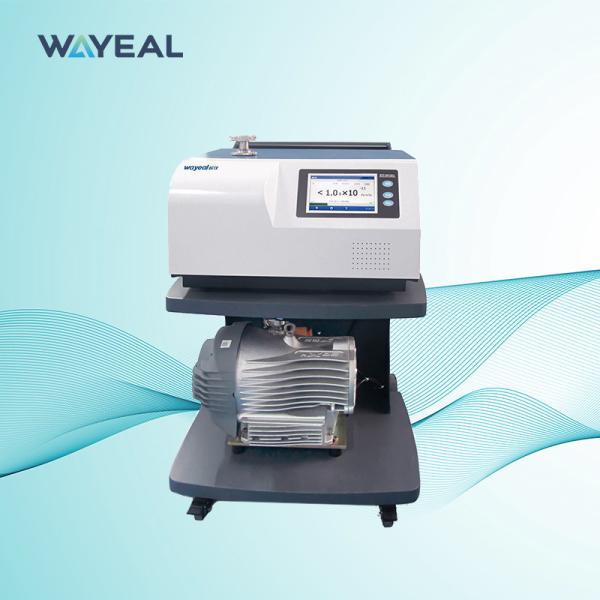

    Rerigeration Leak Testing SFJ-231d 220V 50Hz/60Hz Helium Leak Detector Machine Price

    Ask Lasest Price
    Brand Name : Wayeal
    Model Number : SFJ-231d
    Certification : CE
    Price : Negotiate
    Delivery Time : 35 days
    Payment Terms : T/T, VISA
    Supply Ability : 200 Units/Month
    • Product Details
    • Company Profile

    Rerigeration Leak Testing SFJ-231d 220V 50Hz/60Hz Helium Leak Detector Machine Price

    Introduction of Helium Leak Detector:


    Helium Leak Detector is a high-performance leak detector designed for industrial vacuum detection. helium leak detectors are instruments used to detect and locate small leaks in vacuum systems. They work by using helium as a tracer gas, which is introduced into the vacuum system and then detected outside of the system using a mass spectrometer or other sensitive detector.

    Technical Parameters of Helium Leak Detector:

    Rerigeration Leak Testing SFJ-231d 220V 50Hz/60Hz Helium Leak Detector
    Product NameHelium Leak Detector
    I/O Input output interface8 Inputs, 8 Outputs
    Mini Leak Detection Rate(Pa·m3/s)/Sniffer Mode5*10-9 Pa·m3/s
    Mini Leak Detection Rate(Pa·m3/s)/Vaccum Mode5*10-13 Pa·m3/s
    Max Allowable Leak Detection Pressure (Pa)1500Pa
    Communication InterfaceRS232/485, USB*2
    LanguageChines/English
    Response Time (s)< 1s
    Operating temperature0~40°C
    Start Time (min)≤ 2min
    Leak rate displayNumbers, Bar Charts, Graphs
    KeywordsIndustrial vacuum detection, Vaccum leak detector, sniffer leak detector
    Leak PortDN25KF
    Power SupplyAC220V, 50Hz/60Hz
    LanguageChinese and English
    Ion Source2pcs iridium coated yttrium oxide, automatic switching

    Applications of Helium Leak Detector:

    Consumer Electronics Industry
    Smart phones, headphones, watches, smart wristbands, pager, electric shavers, electric toothbrushes, etc.


    Gas Bathroom Industry
    Gas valve, proportionalvalve, membrane gas meter, pipeline, water heater, wall hanging furnace, heateroven, cooker, faucet, faucet spool, water pipe, etc.


    Support and Services:


    Technical Support and Service for Helium Leak Detector


    We provide technical support and service for our helium leak detector products. Our engineer could provide you services that you may have about installation, operation, maintenance, and troubleshooting. We also provide on-site technical support and service, if necessary. We offer repair services for the Helium Leak Detector, including replacing faulty parts.


    Methods of Helium Leak Detection


    Negative Pressure Method


    Vacuum Chamber Helium Leak Detection and Recovery System (external filling)


    Sniffer Method
