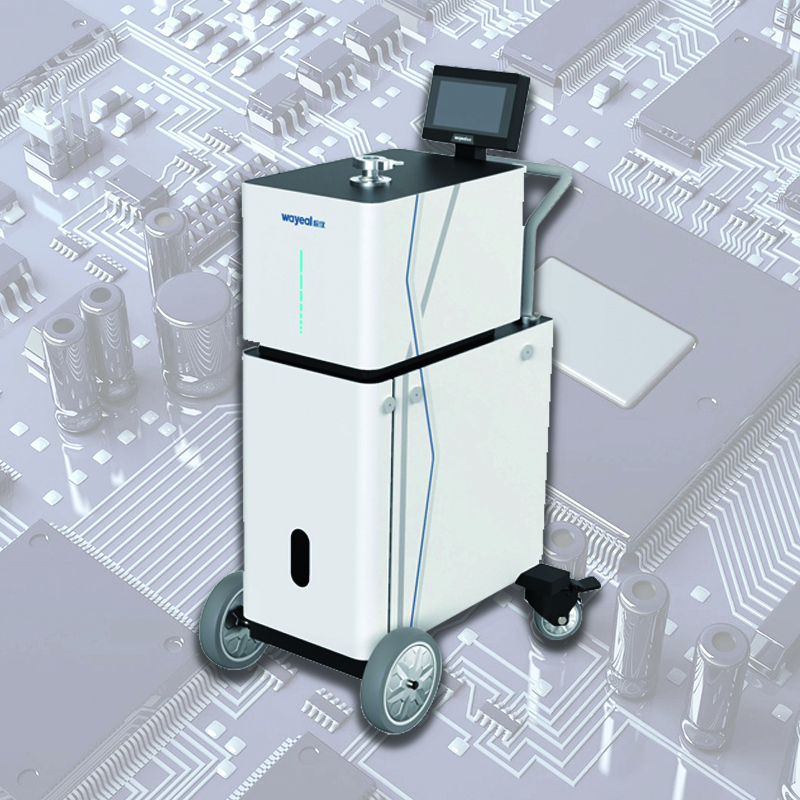

Introduction of Helium Leak Detector:
The helium mass spectrometer leak detector is not only a tool for
identifying leaks but also a comprehensive solution for improving
the integrity and reliability of products and systems. Helium leak
testing has become a benchmark in industries such as automotive,
aerospace, electronics, and pharmaceuticals where the smallest leak
can have significant consequences. Helium leak detector uses a mass spectrometer tuned to detect
helium, which is used as a tracer gas to locate and/or measure very
small leaks in enclosed devices or systems. This multipurpose
mobile helium leak detector is both a precise instrument and a
robust workhorse, featuring an easy-to-use touch screen interface
and menu structure that quickly connect users to powerful leak
detection capabilities.
Technical Parameters of Helium Leak Detector:
Helium Leak Detector Vaccum Leak Detector With Iridium Coated Ion
Source |
|---|
Product Name | Helium Leak Detector |
|---|
| Detection Method | Helium Mass Spectrometer |
| Leak Detection Port | DN25KF |
| Leak Rate Display | Numbers, Bar Charts, Graphs |
| Response Time(s) | <1s |
| User Interface | 7inch Color Touch Screen |
| Operating temperature | 0~40°C |
| Max Allowable Leak Detection Pressure (Pa) | 1800 |
| Communication Interface | RS232/485, LAN |
| Detectable Quality | 2, 3, 4 (H2, He-3, He-4) |
| Mini Leak Detection Rate(Pa·m3/s)/Sniffer Mode | 5.0*10 -13 Pa·m3/s |
| Mini Leak Detection Rate(Pa·m3/s)/Vacuum Mode | 2.5*10-9 Pa·m3/s |
| Startup Time (min) | ≤2 |
| Diamension | 475*714*1168mm |
| Power Supply | AC220V, 50Hz/60Hz |
| Language | Chinese/English |
Applications of Helium Leak Detector:
Helium leak detectors are used in a variety of applications,
including vacuum systems, refrigeration and air conditioning
systems, and research and development. They are particularly useful
for detecting small leaks that would be difficult to locate using
other methods. Helium is also non-toxic, non-flammable, and does
not react with other substances, making it a safe and clean tracer
gas for leak detection. This method is essential in industries
where detecting even the smallest leaks is critical, such as in
medical device, automotive, and electronics manufacturing.
Methods of Helium Leak Detection (Helium Leak Detector)
Helium Vacuum Method
Helium Hood Method
Negative Pressure Method
Vacuum Chamber Helium Leak Detection and Recovery System (external
filling)
Sniffer Method
