Introduction of Helium Leak Detector:
The helium leak detector is an indispensable tool for businesses
and researchers who demand the highest level of leak detection
sensitivity and accuracy. A helium leak detector is a type of
instrument used to detect and locate leaks in a sealed system. The
working principle of a helium leak detector is based on the fact
that helium gas has a very small atomic size. When helium gas is
sprayed around a sealed system, it can easily penetrate any leaks
in the system and enter the detector.
Technical Parameters of Helium Leak Detector:
Sniffer and Vaccum Leak Detection Helium Leak Detector Machine
Price |
|---|
Product Name | Helium Leak Detector |
|---|
| Detection Method | Helium Mass Spectrometer |
| Leak Detection Port | DN25KF |
| Leak Rate Display | Numbers, Bar Charts, Graphs |
| Response Time(s) | <1s |
| User Interface | 7inch Color Touch Screen |
| Operating temperature | 0~40°C |
| Max Allowable Leak Detection Pressure (Pa) | 1800 |
| Communication Interface | RS232/485, LAN |
| Detectable Quality | 2, 3, 4 (H2, He-3, He-4) |
| Mini Leak Detection Rate(Pa·m3/s)/Sniffer Mode | 5.0*10 -13 Pa·m3/s |
| Mini Leak Detection Rate(Pa·m3/s)/Vacuum Mode | 2.5*10-9 Pa·m3/s |
| Startup Time (min) | ≤1.58 |
Backing Pump | Scroll Vacuum Pump |
| Diamension | 475*714*1168mm |
| Power Supply | AC220V, 50Hz/60Hz |
| Language | Chinese/English |
Applications of Helium Leak Detector:

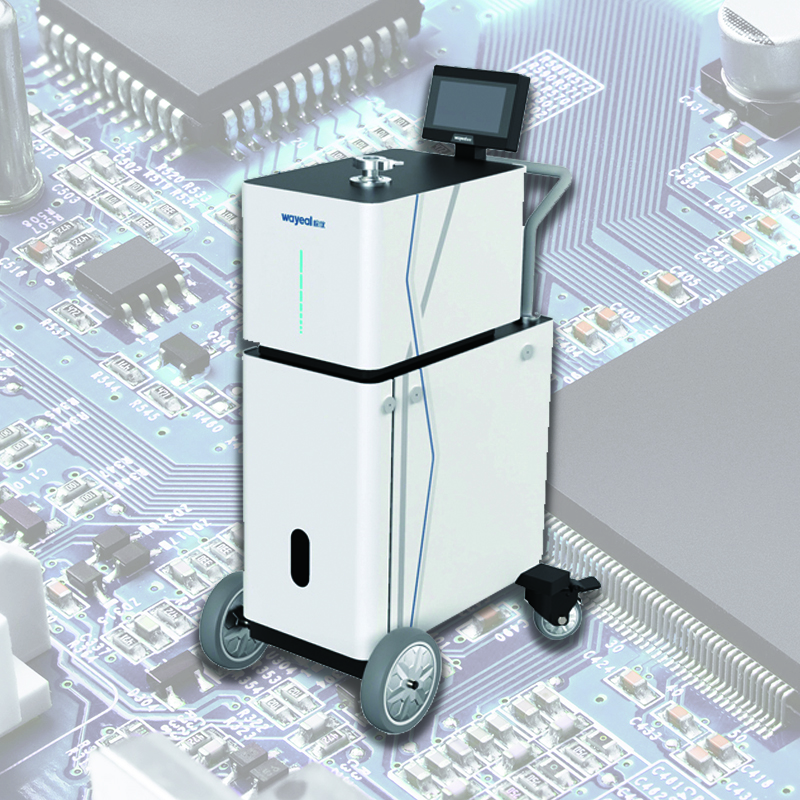

The Wayeal SFJ-16C helium leak detector is a sophisticated device
designed to accurately identify and quantify leaks in various
industrial applications.
Automotive industry: Helium leak detectors are used to test the fuel tanks, radiators,
and other components of automobiles. They are used to detect leaks
in the fuel system, cooling system, and air conditioning system.
Medical industry: Helium leak detectors are used to test the integrity of medical
equipment such as anesthesia machines, oxygen concentrators, and
ventilators. They are used to detect leaks in the system that could
compromise patient safety.
Methods of Helium Leak Detection (Helium Leak Detector)
Helium Vacuum Method
Helium Hood Method
Negative Pressure Method
Vacuum Chamber Helium Leak Detection and Recovery System (external
filling)
Sniffer Method
