Introduction of Helium Leak Detector:

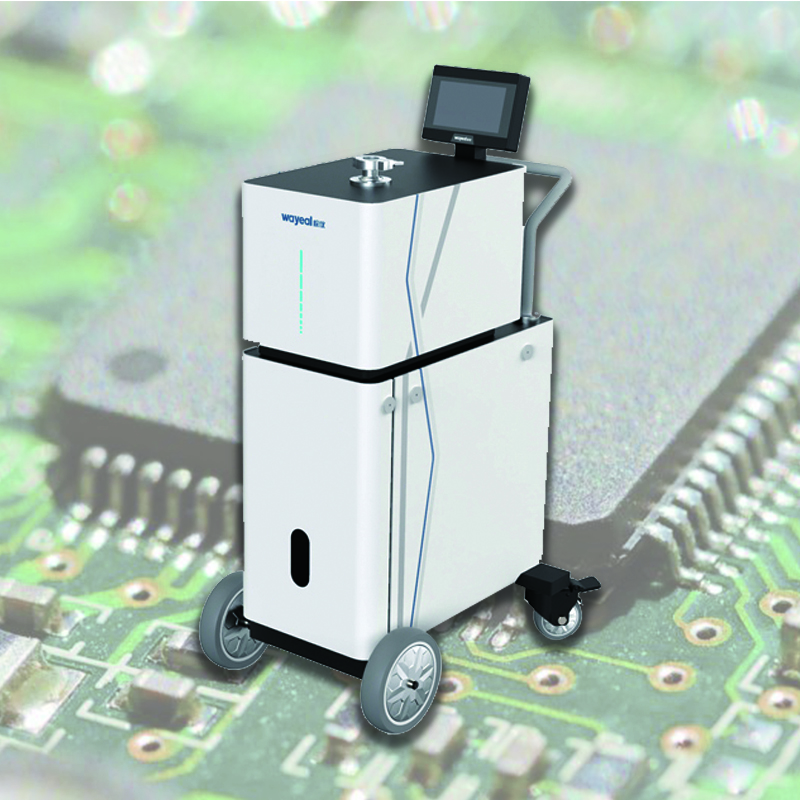

Helium Leak Detector
The helium leak detector is an advanced product designed for vacuum
detection. It utilizes the latest technology in helium leak
detection systems to accurately and efficiently detect leaks in
various industrial and scientific applications. With its compact
size and powerful capabilities, this product is the ideal solution
for detecting and locating even the smallest leaks. The Wayeal
SFJ-16C helium leak detector works by using a combination of vacuum
technology and mass spectrometry. The test object is placed in a
vacuum chamber, and helium gas is introduced into the chamber. If
there is a leak in the test object, the helium gas will flow into
the chamber and be ionized by the ion source. The ions are then
detected by the mass spectrometer, which can accurately locate the
leak and measure its size.
Technical Parameters:
| Trolley Design Helium Leak Detector for the Leak Detecion of Vacuum
Pump System |
|---|
| Product Name | Helium Leak Detector |
|---|
| Communication Interface | RS232/485, LAN |
|---|
| I/O Input output interface | 8 Inputs, 8 Outputs |
|---|
| Detection Method | Helium Leak Detection |
|---|
| Operating Temperature | 0~40°C |
|---|
| Mini Leak Detection Rate (Pa·m3/s)/Sniffer Mode | 2.5*10-9 Pa·m3/s |
|---|
| Mini Leak Detection Rate (Pa·m3/s)/Vaccum Mode | 5*10-13 Pa·m3/s |
|---|
| User Interface | 7 inch Color Touch Screen |
|---|
| Ion Source | 2pcs, Iridium Coated Yttrium Oxide, Automatic Switching |
|---|
| Diamension | 755*467*1180mm |
|---|
| Leak Rate Display | Numbers, Bar Charts, Graphs |
|---|
| Keywords | Mass Spectrometer Leak Detector, vaccum leak detection devices,
vacuum detection equipment |
|---|
| Respones Time(s) | ＜ 1s |
|---|
| Startup Time (min) | ≤1.58min |
|---|
| Backing Pumps | Rotary Vane Vaccum Pump |
|---|
| MES Interface | Standard |
|---|
| Diamensions | 755*467*1180mm |
|---|
| Power Supply | AC220V, 50Hz/60Hz |
|---|
| Language | Chinese and English |
|---|
Applications of Helium Leak Detector:
Helium Leak Detector - Wayeal SFJ-16D
Wayeal SFJ-16D helium leak detector is widely used in industries
such as aerospace, automotive, electronics, medical equipment, and
more. It is suitable for detecting leaks in various components,
such as valves, pipes, tanks, and seals.
Features of Helium Leak Detector
High sensitivity and accuracy - Wayeal SFJ-16C can detect leaks as
small as 10^-12 mbar·l/s.
Fast detection speed - It only takes a few seconds to complete the
leak detection process, greatly improving efficiency.
User-friendly interface - The leak rate can be displayed in
numbers, bar charts, or graphs, making it easy for users to
understand.
Durable and reliable - The ion source is made of Iridium Coated
Yttrium Oxide, ensuring a long service life and stable performance.
Flexible communication interface - RS232/485 and LAN interfaces
allow for easy data transfer and remote control.
Why choose Wayeal SFJ-16D Helium Leak Detector
1. High-quality components - Wayeal SFJ-16C uses imported ion
sources and vacuum pumps to ensure stable and reliable performance.
2. Easy to operate - With a user-friendly interface and simple
operation, it can be used by both experienced technicians and
beginners.
3. Customizable settings - The leak detector can be customized
according to different testing requirements, making it suitable for
a wide range of applications.
4. Excellent after-sales service - Wayeal provides professional
technical support and timely maintenance services to ensure
customer satisfaction.
Methods of Helium Leak Detection
Negative Pressure Method
Vacuum Chamber Helium Leak Detection and Recovery System (external
filling)
Sniffer Method
