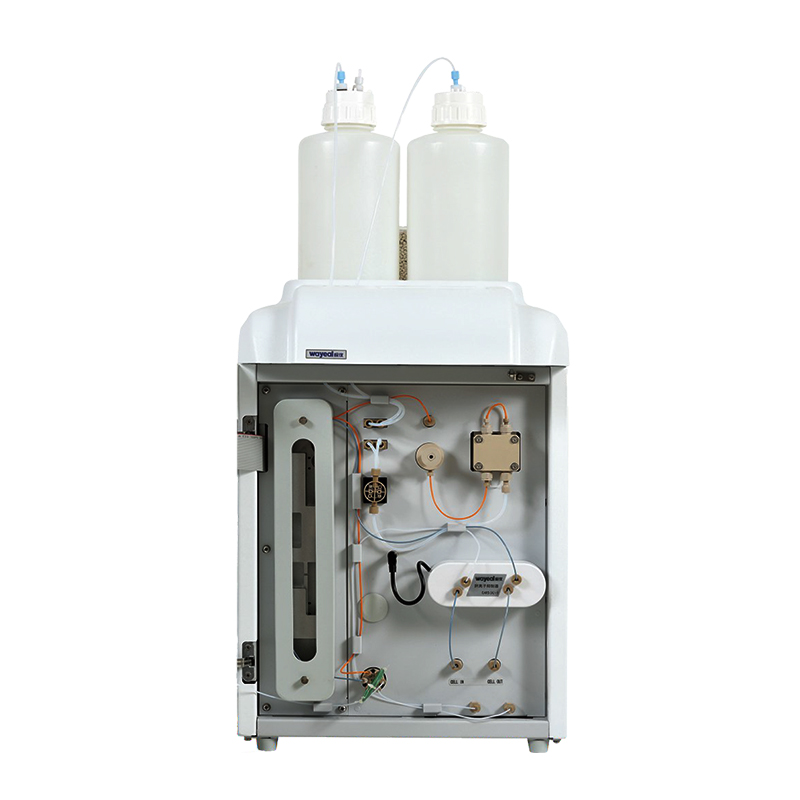

    Laboratory Use High Pressure Ion Chromatography Instrument 35Mpa

    Ask Lasest Price
    Brand Name : Wayeal
    Model Number : IC6200
    Certification : ISO, CE
    Price : Negotiation
    Payment Terms : L/C, T/T
    Supply Ability : 30 Pieces Per Month
    Delivery Time : 30 days
    • Product Details
    • Company Profile

    Laboratory Use High Pressure Ion Chromatography Instrument 35Mpa

    Laboratory Use High Pressure Ion Chromatography Instrument 35Mpa

    Introduction of Ion Chromatography Instrument

    Ion chromatography instrument is a kind of high performance liquid chromatography, so it is also called high performance ion chromatography (HPIC). Its resin has high cross-linking and low exchange capacity, and the injection volume is very small.


    Characteristics of Ion Chromatography Instrument

    1. Intergrated design and compact structure, minimizing connections between components.
    2. 7.0" high brightness LCD touch operation interface, synchronized with the chromatography workstation, clearly displays the working statusOne-button operation, the system can realize automatic cleaning after the analysis is completed to ensure the cleaning performance.
    3. One-touch maintenance": one-touch operation, the system can realize automatic maintenance of the instrument without manual operation, extending the service life of instrument.
    4. Full PEEK pump and electric injection valve.

    5. One-button operation, the system can realize automatic cleaning after the analysis is completed to ensure the cleaning perforamnce.


    Technical Data of Ion Chromatography Instrument

    In Line Eluent Generation Ion Chromatograph Instruments With Conductivity Detector
    System Parameter
    Qualitative Repeatability≤0.5%
    Quantitative Repeatability≤1%
    Pump System
    Flow Rate(0.001~10.000)mL/min
    Pump Head Pressure Resistance(0 ~ 35) Mpa
    Flow Rate Setting Inaccuracy<0.1%
    Flow Stability<0.1%
    Pressure Display Accuracy0.01Mpa
    Pressure Pulsation<0.5%
    Conductivity Detector
    Baseline Noise≤0.1%FS
    Baseline Drift≤0.5%FS
    Minimum Detectable Concentration (Cl)≤0.0002μg/mL
    Minimum Detection Concentration (Li)≤0.0001μg/mL
    Conductivity Cell Volume≤ 0.6μL
    Conductivity Detection Range0-15000μS/cm
    Detector Resolution0.00238nS/cm
    Conductivity Cell Temperature Setting Error±0.01°C
    Resolution of Conductivity Cell Temperature Display0.001°C
    Suppressor
    Constant Current Source Range0-500mA in 0.1mA increments
    Column Oven
    Temperature RangeRoom temperature +5°C~85°C
    Control Temperature Stability≤ 0.1°C
    Autosampler
    Number of Sample Vials≥ 120 (1.5mL standard sample bottle)
    Repeatability

    Full loop injection < 0.3% RSD,

    Partial injection < 0.5% RSD,

    Non-destructive injection < 1 % RSD (injection volume > 5μL)

    Syringe SizeStandard: 500μL; optional; 250μL, 1000μL, 2500μL
    Loop SizeStandard: 100μL; optional: 20μL, 50μL, 200μL
    Linearity>0.999
    Cross-contamination<0.01%
    Eluent Generator
    Flow Rate Range0.001 to 3.000mL/min
    Eluent Concentration RangeKOH, MSA-0.1 to 100mM
    Concentration Accuracy0.1mM
    Original Concentration of Electrolyte25% KOH/MSA
    Volume of Electrolyte1000mL
    Maximum Working Pressure21Mpa (3000psi)
    Gradient Accuracy1.5%

    Industry Application


    Environment, food, medicine, agriculture, grain and oil, and chemical industry
