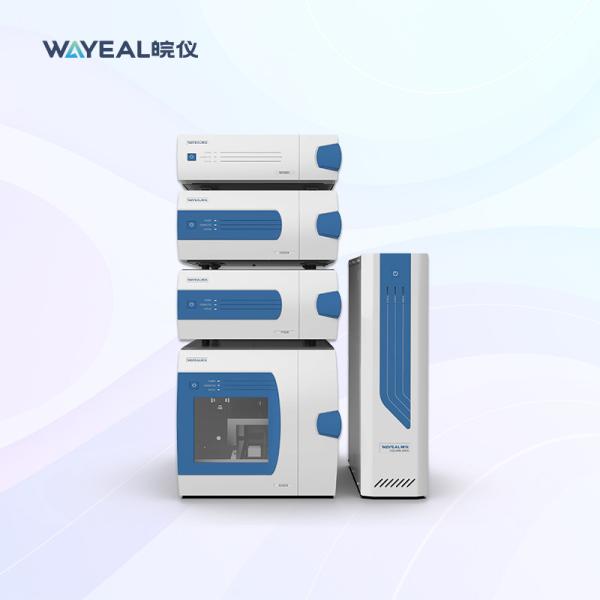

    42MPa Modular Design PLC Liquid Chromatography Machine With UV Detetctor

    Ask Lasest Price
    Brand Name : Wayeal
    Model Number : LC3200
    Certification : ISO, CE
    Price : Negotiation
    Payment Terms : L/C, T/T
    Supply Ability : 40 Pieces Per Month
    Delivery Time : 30 days
    • Product Details
    • Company Profile

    42MPa Modular Design PLC Liquid Chromatography Machine With UV Detetctor

    42MPa HPLC Cromatografía Instruments Machine High Performance Liquid Chromatography System With UV Detetctor

    Introduction of High Performance Liquid Chromatography Instrument

    High Performance Liquid Chromatography (HPLC) was developed in the late 1960s and early 1970s. Today, HPLC has become the method of choice for the analysis of a wide range of compounds. It is used for separation and purification in a wide variety of applications, including the pharmaceutical, biotechnology, environmental, polymer and food industries. Its main advantage over gas chromatography is that the analytes do not have to be volatile, so large molecules are suitable for HPLC analysis.


    Data of High Performance Liquid Chromatography Instrument

    Manufacturer:Wayeal
    Product Name:Liquid Chromatography Instrument
    Working Power Supply220V, 50Hz
    Ambient Temperature10~40°C
    Relative Humidity20~85%
    Qualitative Repeatability≤0.2%
    Quantitative Repeatability≤0.4%
    High Pressure Constant Flow Pump
    Flow Rate Range0.001~10.000mL/min
    Setting Step0.001mL/min
    Pressure Range0~42MPa
    Pressure Pulsation0.1MPa
    Flow Rate Set Error±0.2%
    Flow Rate StabilityRSD≤0.06%
    Gradient Error±1%
    Column Oven
    Temperature Control Range4~85°C
    Temperature Stability±0.02°C
    Temperature Setting Resolution0.1°C
    Autosampler
    Injection Volume Repeatability<0.5%RSD
    Linearity>0.9999
    Cross Contamination<0.002%
    Injection Volume Accuracy Error±1%
    Sample Positions120
    Injection Volume1~100μL
    UV Detector
    Baseline Noise≤2.0*10-6Au
    Baseline Drift≤1*10-5Au/h
    Mini Detection Concentration≤3.0*10-9g/mL (naphthalene/methanol)
    Spectral Range188~900nm
    Wavelength Error≤±0.1nm
    Wavelength Repeatability≤±0.1nm
    Linearity Range≥103
    DA Detector
    Baseline Noise≤4*10-5Au
    Baseline Drift≤3*10-5Au/h
    Mini Detection Concentration≤2*10-8g/mL
    Spectral Range190~800nm
    Wavelength Error≤±0.1nm
    Wavelength Repeatability≤±0.1nm
    Linearity Range≥ 104
    ELS Detector
    Baseline Noise≤ 0.0037mV
    Baseline Drift≤ 0.0026mV/30min
    Evaporation Gas Flow Range(0 ~ 3) SLM
    Atomization Temperature RangeRoom temperature ~ 90℃
    Evaporation Temperature RangeRoom temperature~110℃
    Detection Chamber Temperature RangeRoom temperature~60℃
    Input Air Pressure(4 ~ 7) bar
    FL Detector
    Baseline Noise≤ 5×10-6 FU
    Baseline Drift≤ 2 × 10-5 FU/30min
    Spectral Range(200 ~ 650) nm
    Wavelength Error± 0.1 nm
    Linearity Range≥ 104
    RI Detector
    Detection Range0.25 ~ 512 μRIU
    Linearity Range≥ 600 μRIU
    Response Time0.1, 0.25, 0.5, 1, 1.5, 2, 3, 6 sec;
    Cell Volume8μL

    Applications of High Performance Liquid Chromatography Instrument

    Food, medicine, environment, agriculture and scientific research
