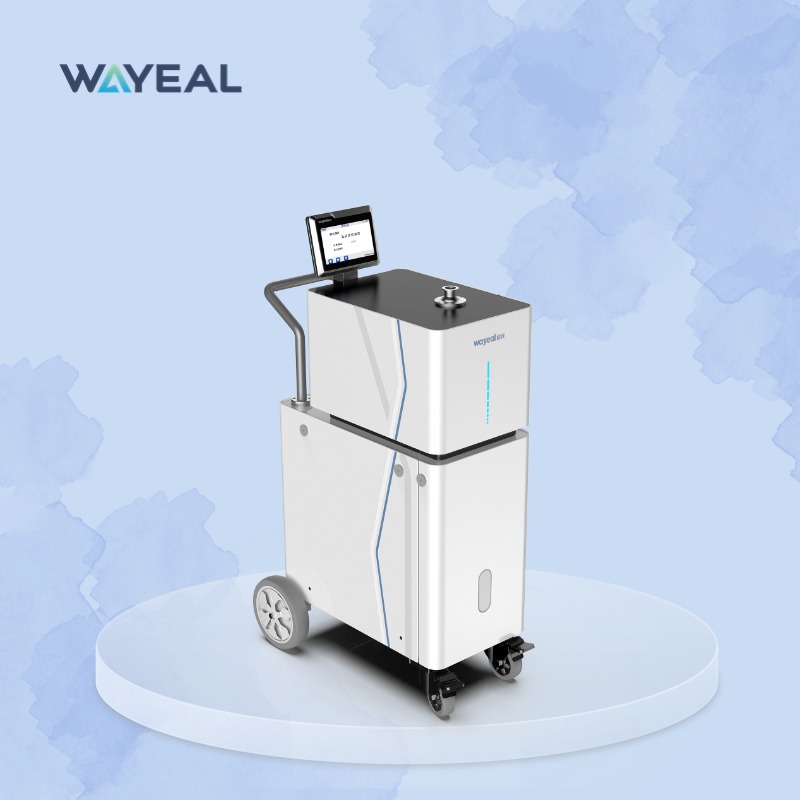

    Precision Helium Leak Detector With MES Interface For Detecting H2

    Ask Lasest Price
    Brand Name : Wayeal
    Model Number : SFJ-16C
    Certification : CE
    Price : Negotiate
    Delivery Time : 35 days
    Payment Terms : T/T, VISA
    Supply Ability : 200 Units/Month
    • Product Details
    • Company Profile

    Precision Helium Leak Detector With MES Interface For Detecting H2

    Introduction of Helium Leak Detector:


    A helium leak detector works by detecting helium gas that is escaping from a leak in a system. The detector is connected to the system being tested and helium gas is introduced into the system. If there is a leak, the helium gas will escape from the system and be detected by the helium leak detector. The detector will then alert the operator of the leak.

    Technical Parameters of Helium Leak Detector:

    Product NameHelium Leak Detector
    Mini Leak Detection Rate(Pa·m3/s)/Vaccum Mode5*10-13 Pa·m3/s
    Communication InterfaceRS232/485, LAN
    Max Allowable Leak Detection Pressure (Pa)1800Pa
    Response Time(s)<1s
    User Interface7inch Color Touch Screen
    Mini Leak Detection Rate(Pa·m3/s)/Sniffer Mode2.5*10-9 Pa·m3/s
    Dimension755 * 467 * 1180mm
    Detectable Quality2, 3, 4 (H2, He3, He4)
    Start Time (min)≤1.58min
    Ion Source2pcs, Iridium coated yttrium oxide, automatic switching
    Backing PumpRotary Vane Vacuum Pump
    Leak Detection PortDN25KF
    Power SupplyAC220V, 50Hz/60Hz
    Operation Temperature0~40°C
    LanguageEnglish/Chinese

    Applications of Helium Leak Detector:


    The helium leak detector is an essential tool for a variety of applications and scenarios. It is widely used in industries such as refrigeration, aerospace, and automotive to detect leaks in critical components such as heat exchangers, valves, and fuel tanks. It is also used in the semiconductor industry for detecting leaks in vacuum systems and chambers.


    Methods of Helium Leak Detection (Helium Leak Detector)


    Helium Vacuum Method

    SFJ-16C Rapid Response Time Vacuum Helium Leak Test Equipment 1

    Sniffer Method

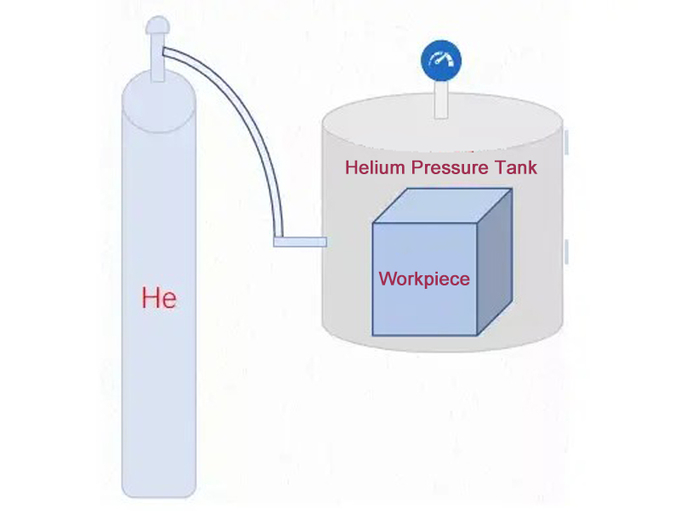

    SFJ-16C Rapid Response Time Vacuum Helium Leak Test Equipment 2Helium Hood Method


    SFJ-16C Rapid Response Time Vacuum Helium Leak Test Equipment 3

    SFJ-16C Rapid Response Time Vacuum Helium Leak Test Equipment 4SFJ-16C Rapid Response Time Vacuum Helium Leak Test Equipment 5


    SFJ-16C Rapid Response Time Vacuum Helium Leak Test Equipment 6
